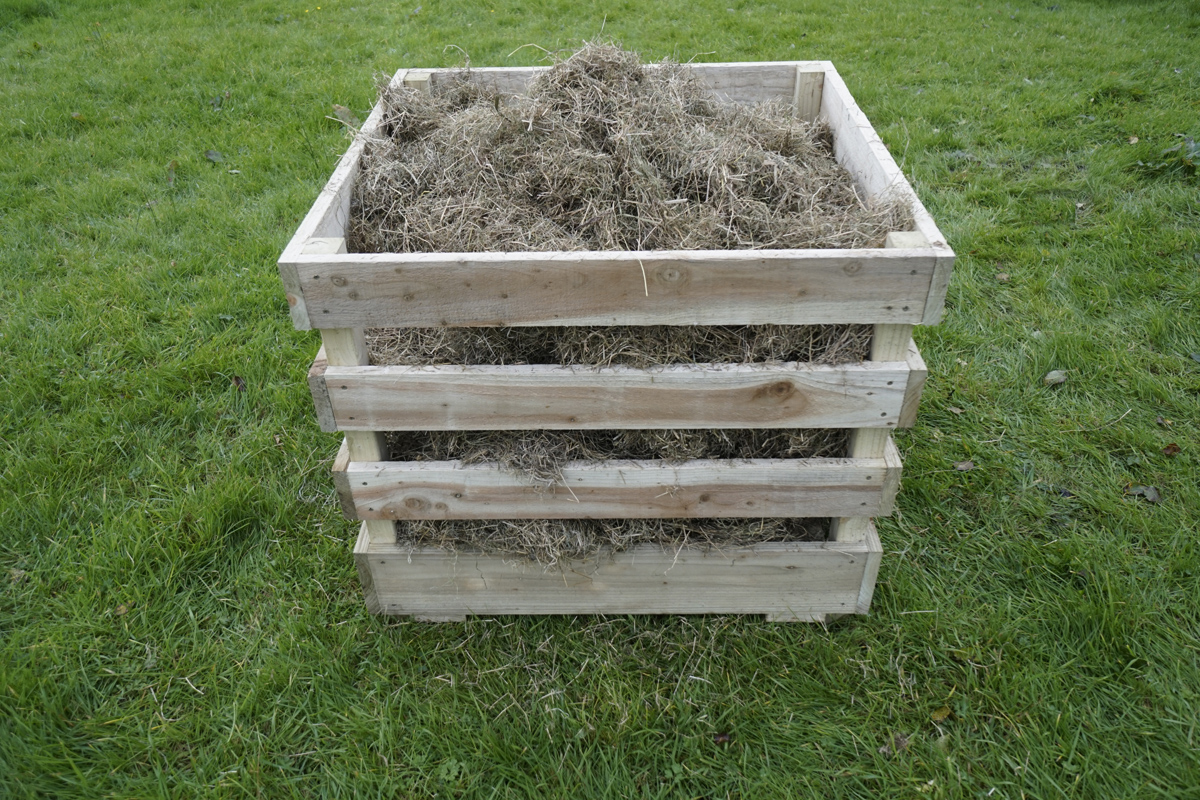

Full Construction Plans for a Horse's Hay Feeder Box

Full Construction Plans on a USB stick.

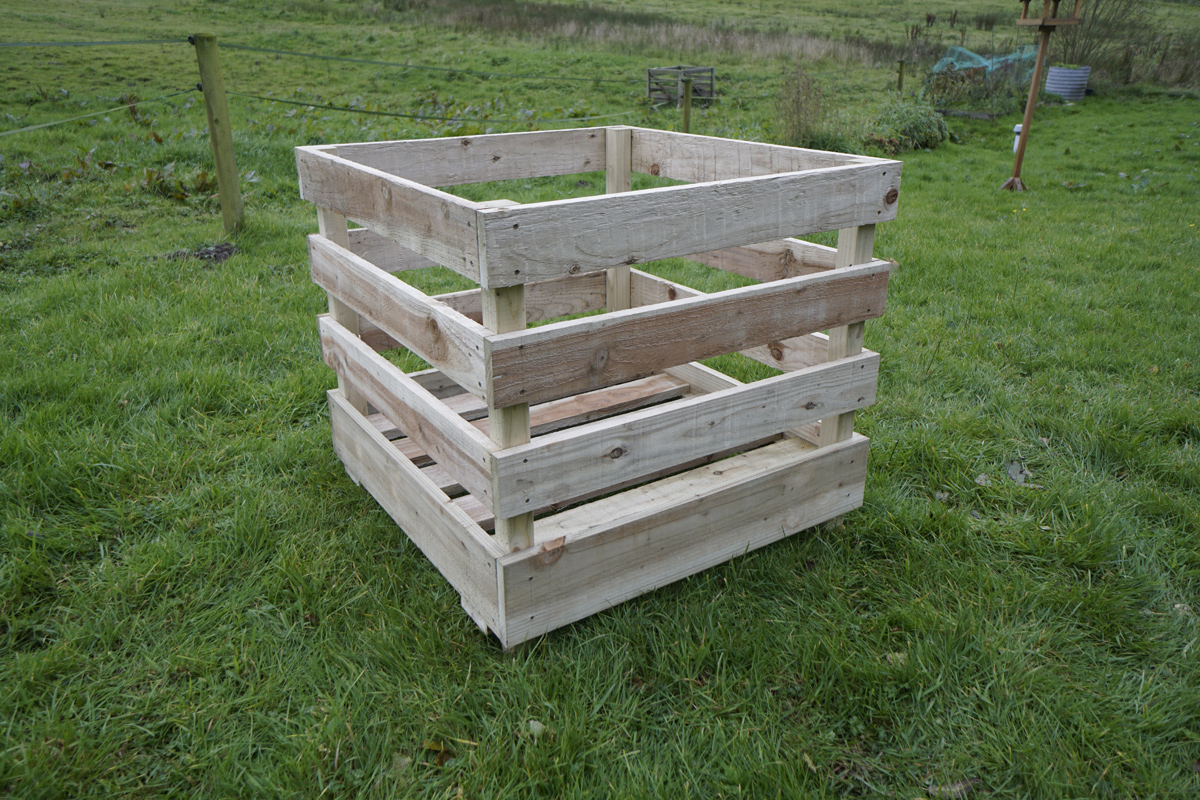

My highly regarded horse hay feeder boxes are now available in full home construction format.

These used to be manufactured by me in my own workshop, constructed from pressure treated timber, protected from rot and insect attack, and thoughtfully designed to keep your horse safe and their hay elevated for full air circulation.
Due largely to persistent courier difficulties, I decided to give customers the option of constructing these boxes themselves, to the same high specifications, thus making big savings, even over lower grade products.

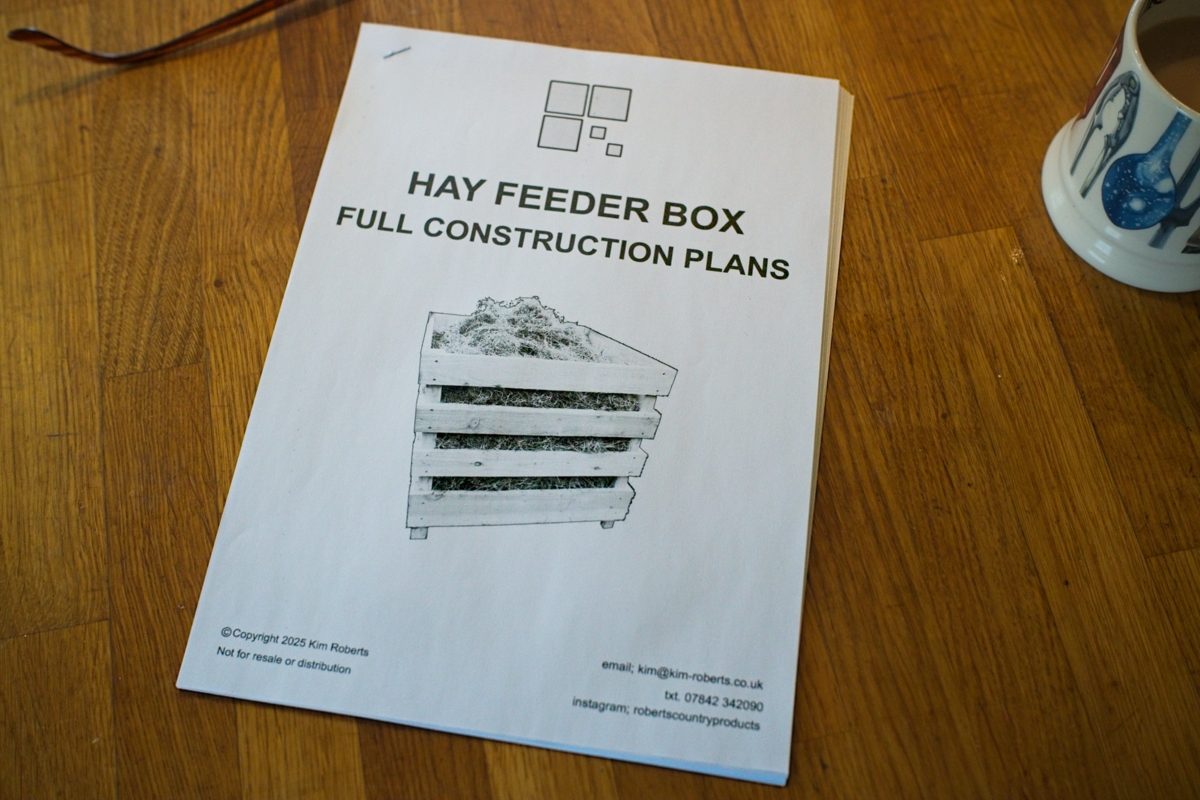

Following my clear and easy to follow construction plans, even those with no prior woodworking experience will have no trouble in producing a hay box to the highest standards.

Highly Affordable

By making your hay feeder box from timber and components you source locally yourself, you will skip the middle man and keep cost to a minimum. Furthermore, you won’t have to pay for delivery costs.

Pressure Treated Timber

By purchasing pressure-treated timber, which is abundantly available, you will construct a hay box resistant to weathering, bugs, mould, and rot. It also has improved dimensional stability, which means it’s less likely to warp or split. Ideally the cut ends should also be treated for similar protection.

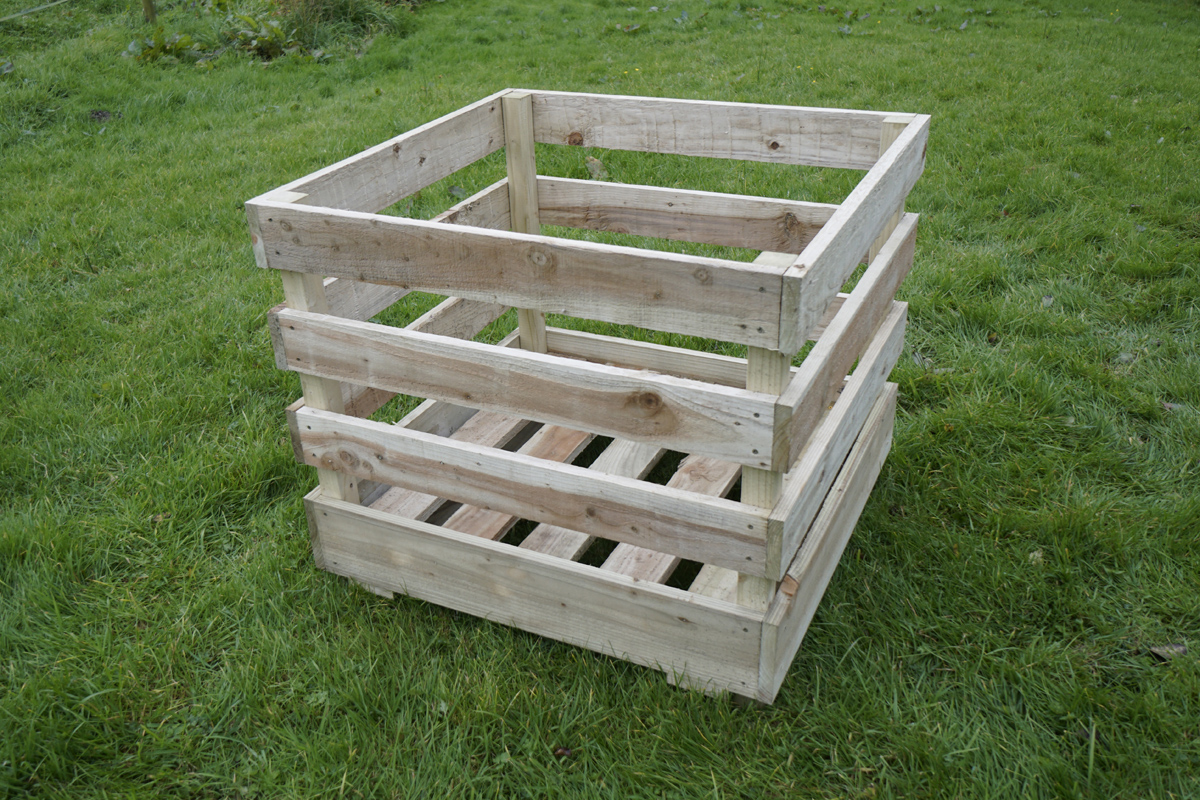

Elevated Base

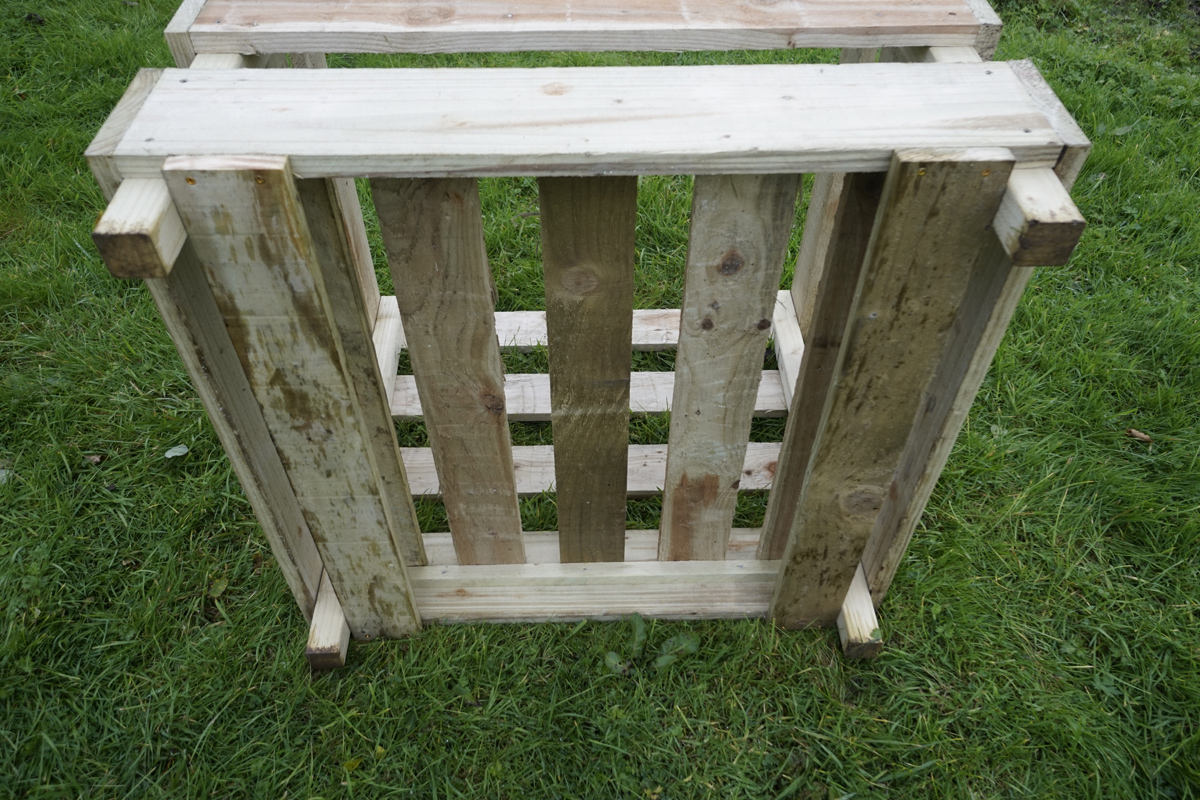

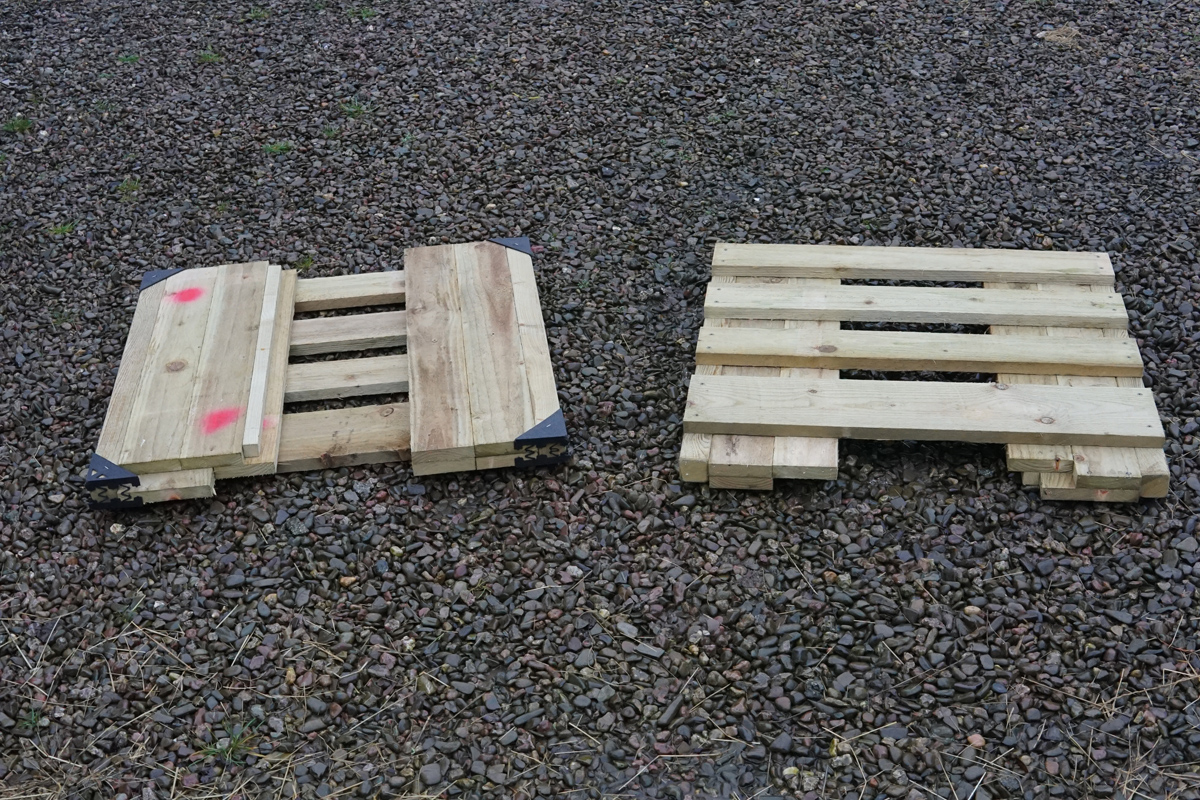

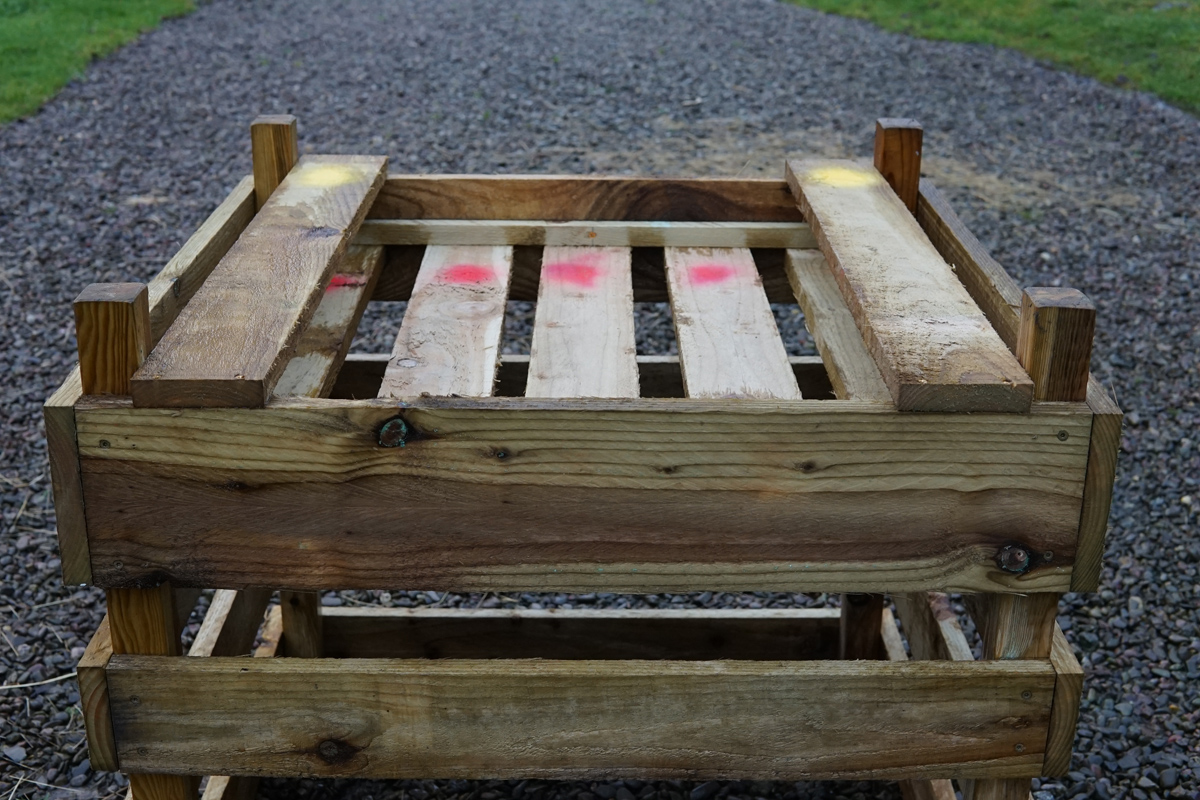

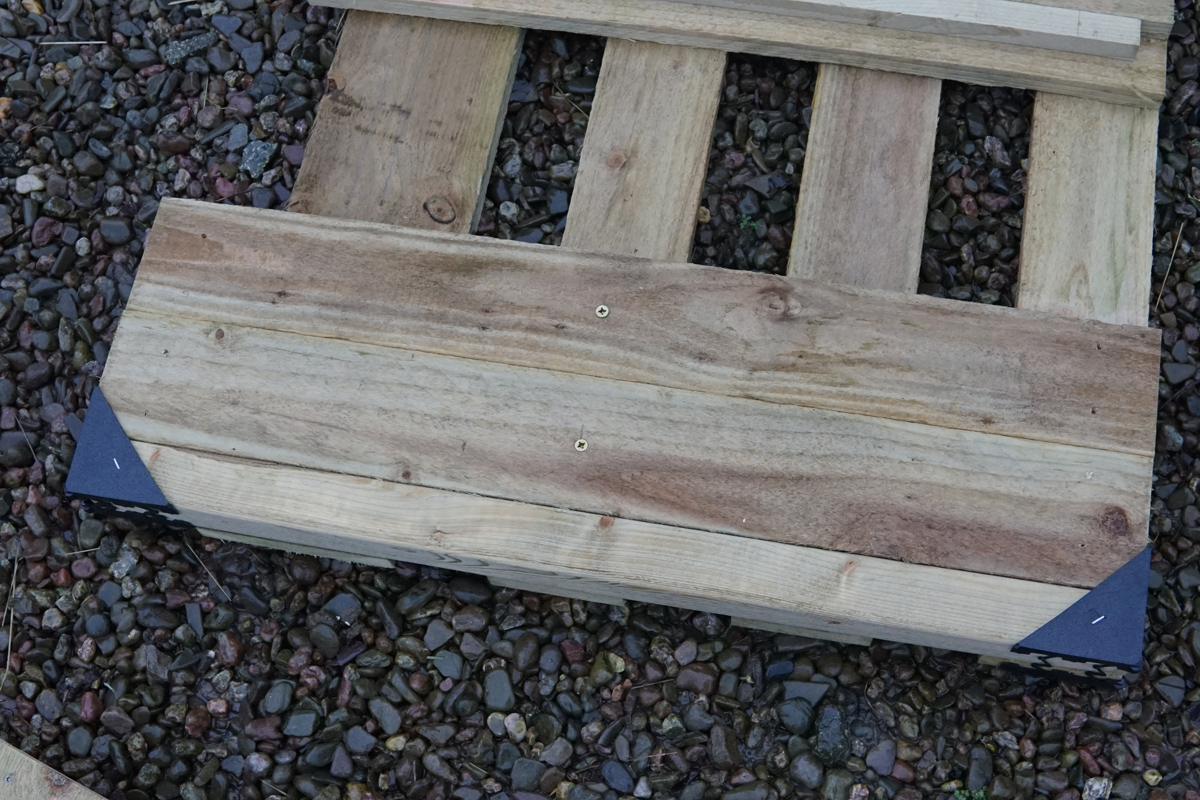

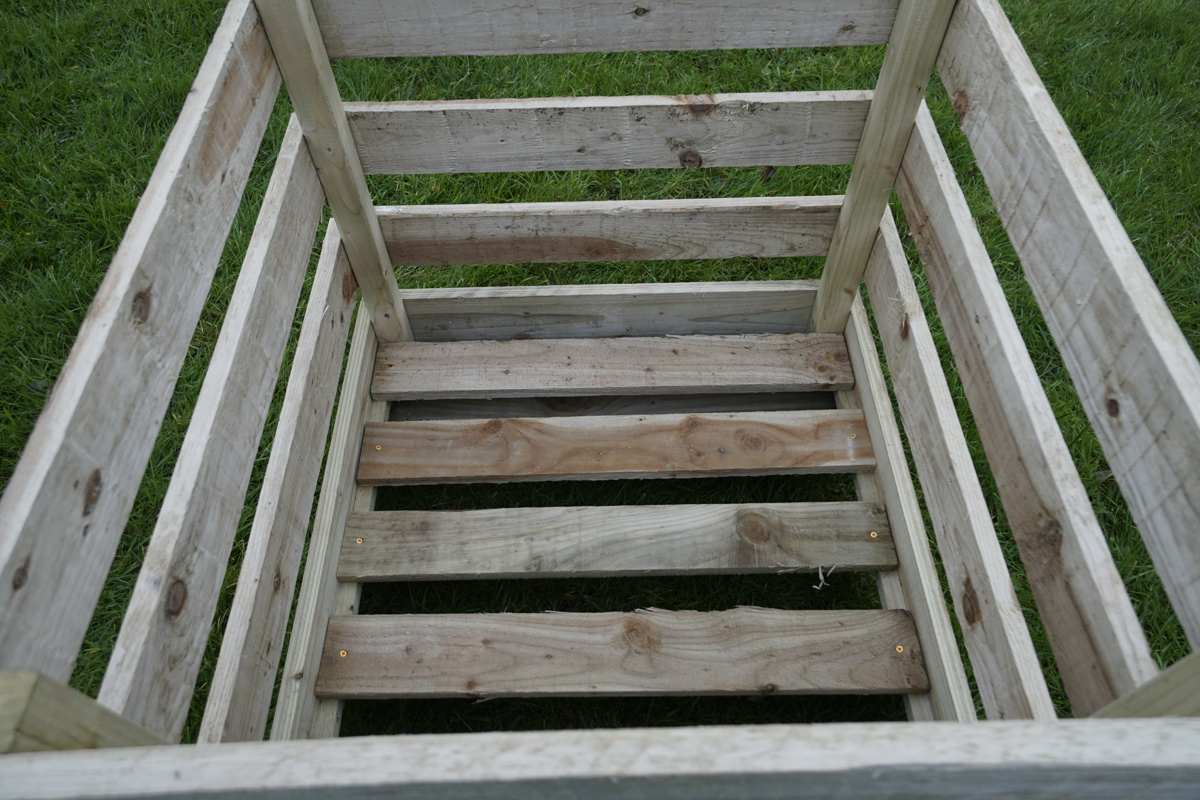

As well as having slatted sides and base, the design features bottom buffer boards. These are fitted to the underside of the box to keep your hay clear of even the softest of ground and provide constant air circulation.

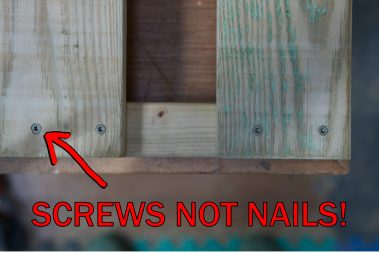

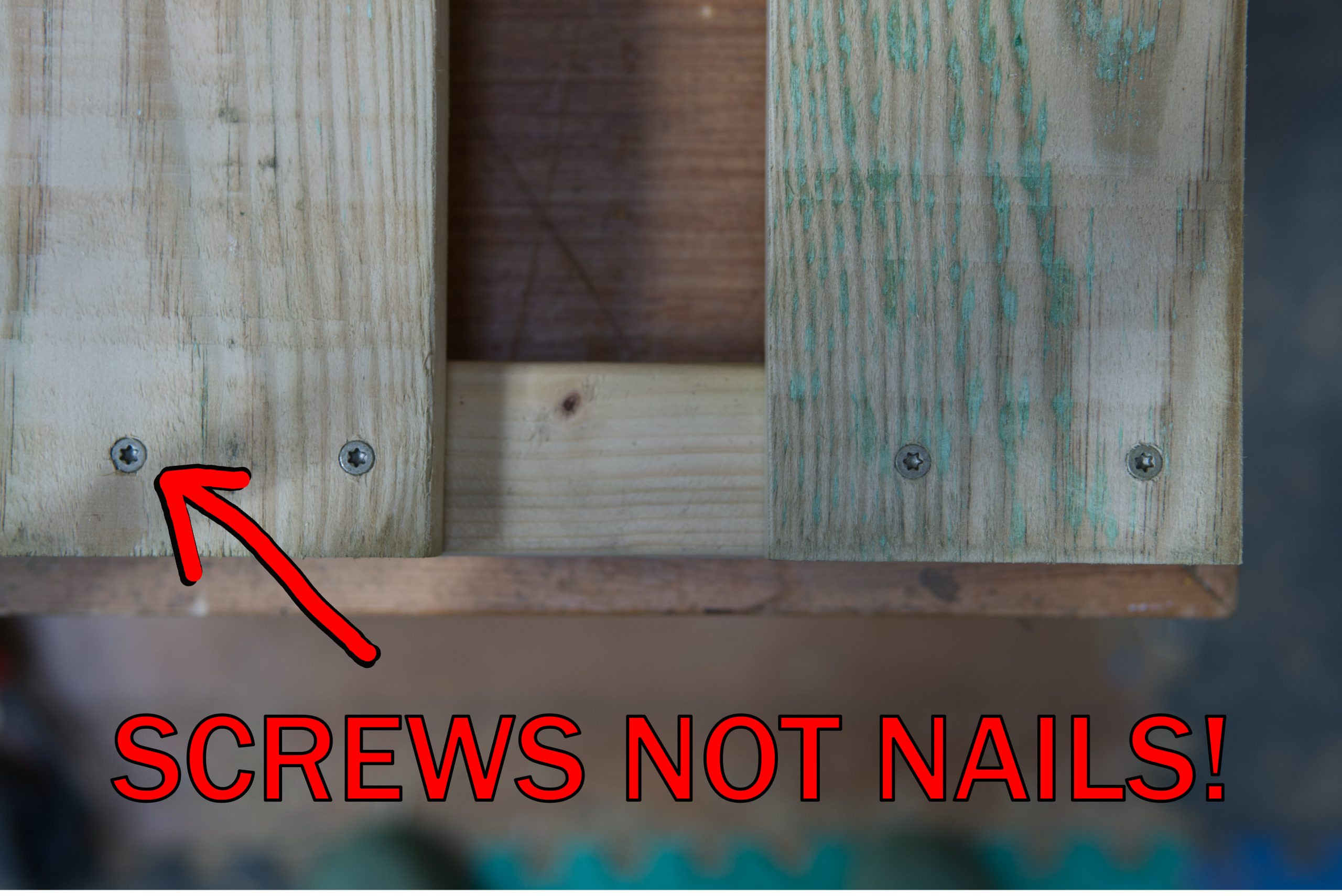

Anti-Corrosion Screws

Corrosion resistant screws are specified in the plans. Coated with a corrosion resistant material to withstand up to 500 hours in a salt spray cabinet without rusting, such screws penetrate the timber more easily, cleanly countersink, and securely clamp components together.

What you need;

  • A power drill
  • Two drill bits as specified
  • A sharp pencil or pen
  • A try square (although you can use anything with 90 corners, like a book)
  • Screwdrivers (or screwdriver bits if you are using a combi-drill)
  • A tape measure

Assembly;

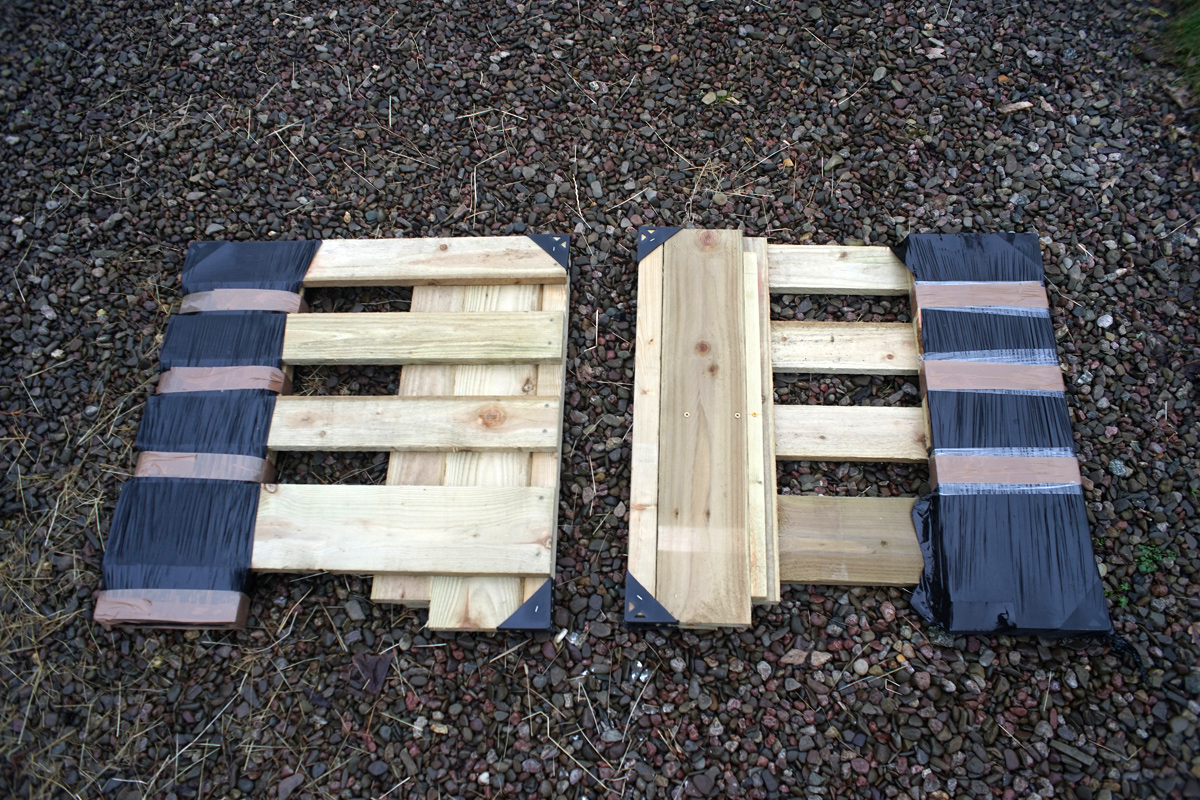

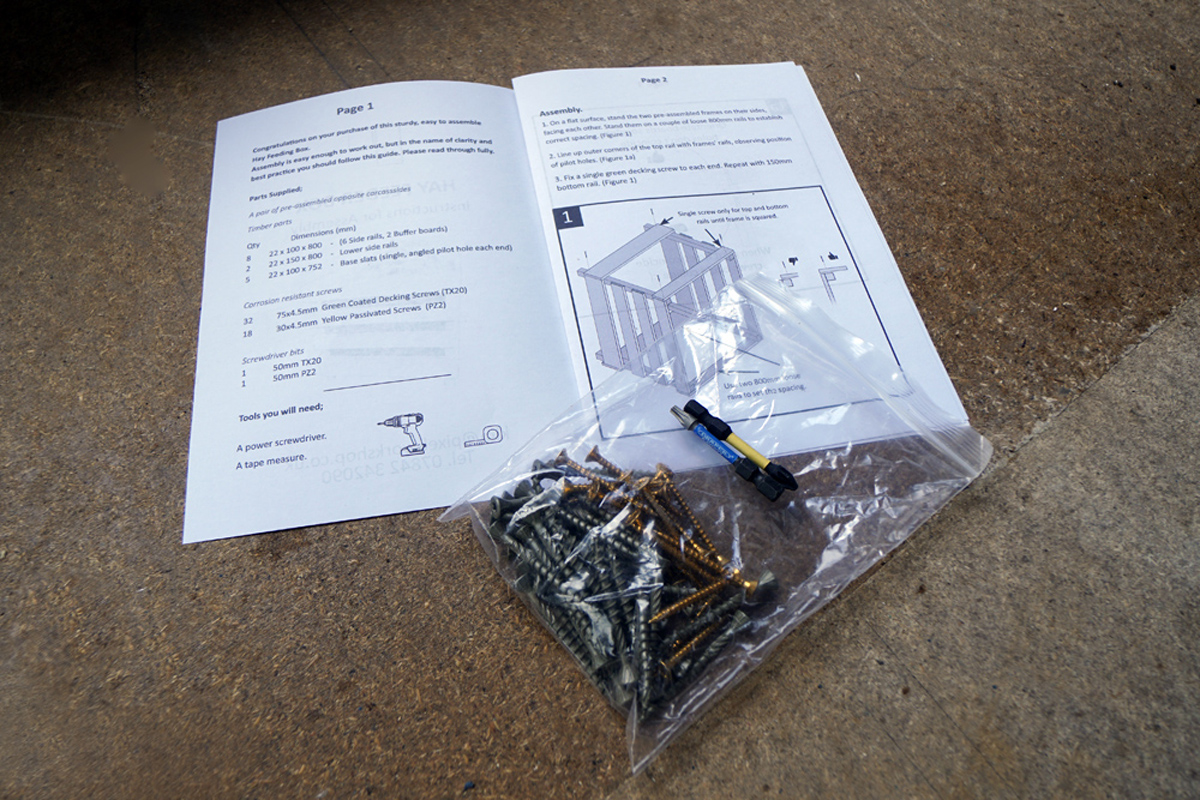

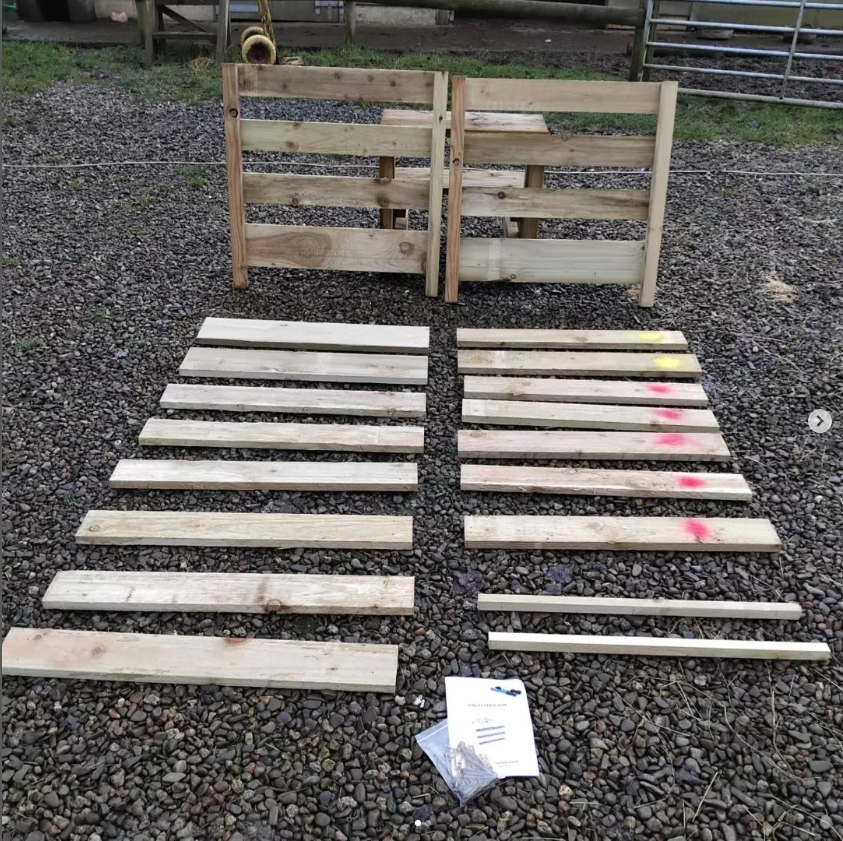

Assembly to finish is a 30 minute job, and the consignment includes all pilot holes pre-drilled accurately, all screws, screwdriver bits, and explicit instructions for assured integrity.
NB You will need a power screwdriver

Dimensions;

H;  750
W; 760mm
D;  804mm

Buy on Ebay

etsy

Buy on Etsy





Footnote
For customers local to me in Mid Wales, and who would prefer to pick up a fully assembled box, I do try to keep a small stock for collection only.

There may be a waiting time, so please message me for details.
